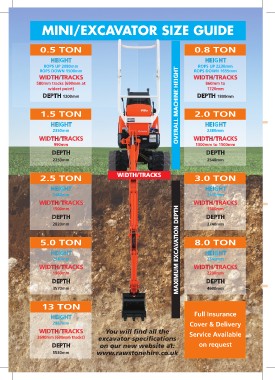

MINI/EXCAVATOR SIZE GUIDE
0.5 TON OVERALL MACHINE HEIGHT 0.8 TON
HEIGHT HEIGHT
ROPS UP 2080mm ROPS UP 2230mm
ROPS DOWN 1500mm ROPS DOWN 1655mm
WIDTH/TRACKS WIDTH/TRACKS
580mm tracks (690mm at 860mm to
widest point) 1720mm
DEPTH 1200mm DEPTH 1800mm
1.5 TON WIDTH/TRACKS 2.0 TON
HEIGHT MAXIMUM EXCAVATION DEPTH HEIGHT
2350mm 2380mm
WIDTH/TRACKS WIDTH/TRACKS
990mm 1300mm to 1500mm
DEPTH DEPTH
2250mm 2540mm
2.5 TON 3.0 TON
HEIGHT HEIGHT
2440mm 2410mm
WIDTH/TRACKS WIDTH/TRACKS
1500mm 1500mm
DEPTH DEPTH
2820mm 2740mm
5.0 TON 8.0 TON
HEIGHT HEIGHT
2540mm 2540mm
WIDTH/TRACKS WIDTH/TRACKS
1960mm 2200mm
DEPTH DEPTH
3570mm 4600mm
13 TON You will find all the Full Insurance
excavator specifications Cover & Delivery
HEIGHT on our new website at: Service Available
www.rawstonehire.co.uk
2867mm on request
WIDTH/TRACKS
2690mm (600mm tracks)
DEPTH
5530mm
